Spatial Patterns of Urban Shrinkage in Depopulating Municipalities in South Korea

Ⅰ. Introduction

Population decline is both a primary cause and consequence of urban shrinkage. In declining cities, the reduction of working-age population leads to increased financial pressures on local governments and challenges in sustaining a sufficient level of public service provision. The decline in public service quality further accelerates out-migration, creating a vicious cycle that undermines urban sustainability.

Since 2020, South Korea has entered a phase of population decline, known as the “dead-cross,” characterized by a higher number of deaths than births. Despite a minor rise in population following the COVID-19, the fertility rate in 2023 remained at 0.72, the lowest among OECD countries. The national decline in population has emerged as a critical concern. At the local level, population decrease is significantly exacerbated not only by natural reasons, such as low birth rates, but also by social ones, such as migration, particularly in non-Seoul metropolitan areas (Kwon, 2005; Choi, 2010).

Consequently, there has been an increased interest in “shrinking smart” strategies (Lee and Han, 2014; Kwon et al., 2018; Park et al., 2020; Nam, 2022). The core strategy of shrinking smart is to foster a compact-network structure by promoting a dense, interconnected urban structure, particularly inside existing urban core areas (Ha and Kang, 2022). Maintaining a density above a specific threshold in these centers ensures the sustainable operation of infrastructure and public services. Enhancing linkages among cores, by connecting medium-sized urban centers, facilitates the borrowing-size effect (Burger and Meijers, 2016; Kwon et al., 2018). A compact-network urban structure enables efficient allocation and management of resources, mitigating local financial burdens (Mattson, 2021; Miyauchi and Setoguchi, 2023). To effectively implement shrinking smart strategies, it is crucial to first analyze how population decline manifests and evolves spatially within cities.

While extensive research has explored urban growth patterns, much less is known about urban shrinkage (Reis et al., 2016). In Korea, previous studies have primarily focused on developing indices to measure urban shrinkage (Lee, 2016; Park and Lee, 2017; Song et al., 2021; Heo, 2022; Kang et al., 2023; Bae and Bae, 2023) and classifying cities based on their shrinkage characteristics (Lim, 2018; Koo and Min, 2018; Kim and Cho, 2019; Park et al., 2020; Lee and Oh, 2021). However, research on spatial transformations within shrinking cities remains in its early stages. Recent studies have analyzed only population centers within shrinking cities (Cho and Lee, 2023; Son and Hong, 2023) or identified areas at risk of disappearance within specific neighborhoods and municipalities (Lee and Kim, 2018; Jang, 2023). There is a significant gap in research that comprehensively analyzes internal spatial change patterns for depopulating cities.

Against this backdrop, this study aims to identify the spatial patterns of urban shrinkage dynamics within depopulating municipalities-cities (Si) and counties (Gun)- by analyzing population distribution changes in both urban areas, where population is concentrated, and non-urban areas over a 20-year period between 2000 and 2020. This study complements previous research on population decline, which typically compares or classifies overall population decrease at the municipal level, by noting that even areas with similar levels of population decline may exhibit different internal change patterns. Deriving population decline patterns by considering population changes between urban and non-urban areas aims to illuminate disparate changes in internal spatial structures that might be overlooked by aggregate municipal-level analyses.

We focus on municipalities designated as depopulating areas by the Korean government under the 2021 Special Act on Decentralization and Regional Balanced Development. The study addresses two key research questions: 1) what spatial patterns characterize population distribution changes in depopulating municipalities? and 2) what demographic, economic, and physical characteristics are associated with different spatial patterns? To address these questions, this study employs multivariate time-series clustering to examine the dynamics of population distribution change in urban and non-urban areas, capturing the structural transformations occurring within depopulating municipalities. The findings of this study will serve as a crucial foundation for spatial planning and policy development aimed at managing urban shrinkage, shifting the focus from aggregate population decline at the city level to the internal spatial dynamics of urban shrinkage.

Ⅱ. Literature Review

Ⅲ. Methodology

1. Study Scope and Data

This study examines 77 depopulating municipalities identified under the 2021 “Special Act on Decentralization and Balanced Regional Development,” excluding metropolitan cities and islands due to their distinct population scales and conditions from the original 89 designated municipalities. The temporal scope of the analysis spans from 2000 to 2020, analyzing urban shrinkage patterns through time-series dynamic analysis. This study utilizes 500 m population grid data from the Statistics Geographic Information Service (SGIS) at five-year intervals. This grid-based approach enables separate estimation of populations in urban and non-urban areas, which would not be feasible with conventional municipal-level population data. The distinction between urban and non-urban areas follows the SGIS classification of Urban Centers and Urban Clusters. Urban Centers or Urban Clusters by SGIS are classified as urban areas, while all remaining areas are considered non-urban. These classifications are based on the United Nations’ urban classification standards.¹⁾ <Table 1> presents descriptive statistics of the population in the 77 depopulating municipalities for the years 2000 and 2020.

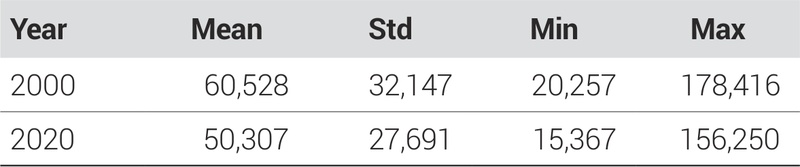

Table 1.

Descriptive statistics of population in depopulating municipalities(unit: persons)

2. Data and Methods

This study employs a three-stage analytical approach to identify spatial shrinkage characteristics in depopulating municipalities.

1) Quantification of Spatial Changes

The first stage quantifies spatial changes within depopulating municipalities between 2000 and 2020. We calculated percentage changes in population for both urban and non-urban areas using the following equation:

$$

(1)

where CP_(u/n),t represents the population change rate in urban (u) or non-urban (n) areas at time t, P_(u/n),t is the population in urban/non-urban areas at time t, P_(u/n),2000 is the population in urban/non-urban areas in base year 2000, with t denoting the time periods (2005, 2010, 2015, 2020).

2) Dynamic Spatial Pattern Classification

The second stage employs multi-temporal clustering to classify dynamic spatial change patterns. We applied Time Series K-means clustering to five-time points of CP_(u/n),t, two-dimensional (urban and non-urban areas) data. For measuring distances between time series data, both Euclidean distance and Dynamic Time Warping (DTW) are commonly used. While Euclidean distance compares values at identical time points, limiting its application to time series of different lengths, DTW compares individual vector values, making it more suitable for varying-length time series and widely used in voice and behavior recognition (Kim and Park, 2018). A meaningful analysis of temporal trajectories requires a minimum of four time points, although incorporating more enhances analytical depth (Nguena Nguefack, et al., 2020; van der Does et al., 2023). For clustering similar data points, K-means and K-medoids are typical approaches. K-means clustering identifies k centers and assigns all objects to the nearest center, with centers being the mean of objects in each cluster, making it sensitive to outliers. K-medoids uses actual objects as cluster centers instead of means, making it less sensitive to outliers (Park and Jun, 2009). In this study, Time Series K-means algorithm effectively classified data patterns based on DTW and K-means clustering. The optimal number of clusters was determined using Silhouette Width and Within-cluster Sum of Squared Error (WSSE) criteria, which are useful for evaluating clustering appropriateness and ensuring cluster validity.

3) Characteristic Analysis by Depopulating Type

The third stage analyzes demographic, economic, and built environment characteristics across different shrinkage patterns. Variables were selected based on previous literature as shown in <Table 2>.

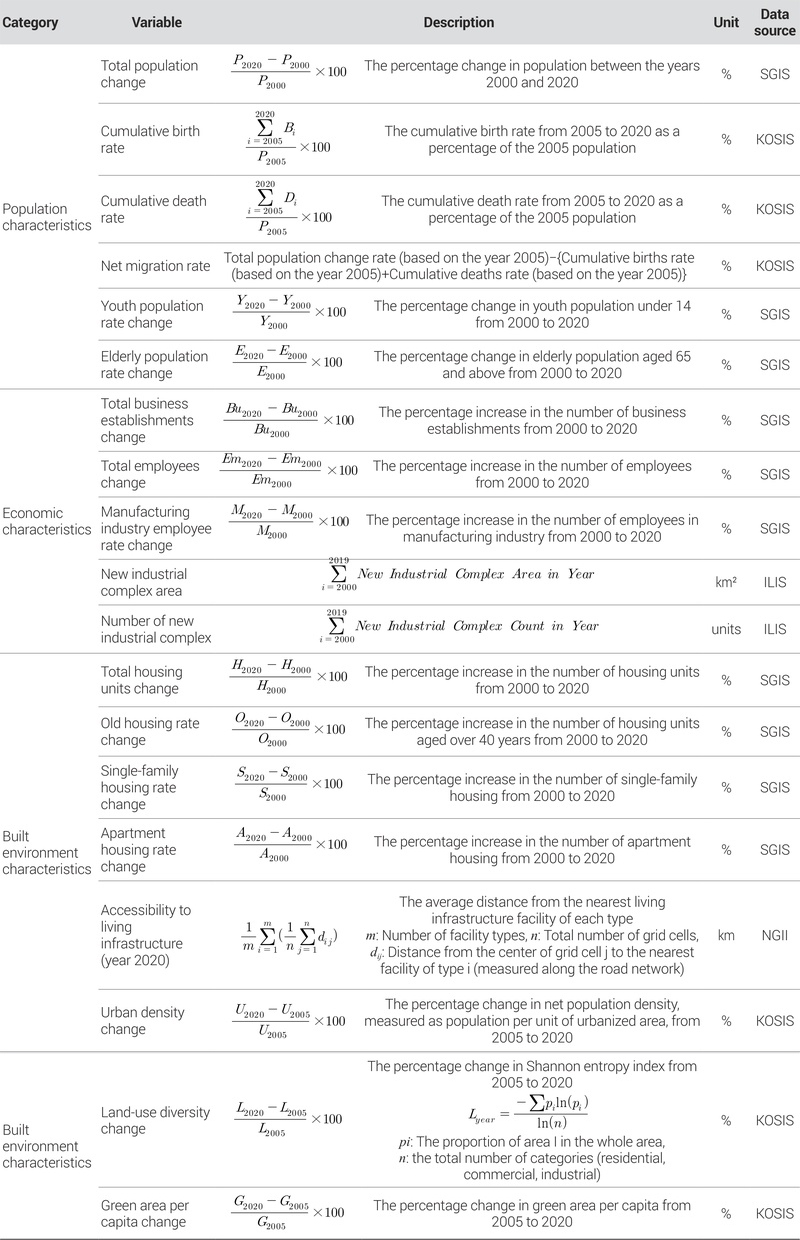

Table 2.

Population, economic, and built environment characteristic variables

Demographic characteristics are captured through six key variables: total population, cumulative births, cumulative deaths, population migration, youth population ratio, and elderly population ratio. These variables allow us to distinguish between natural and social causes of population change while providing insights into demographic structure. Total population represents the number of residents in each depopulating city. Cumulative births and deaths are measured over the study period (2005-2020), while population migration is calculated as the total population change minus natural change (births and deaths). The youth population ratio represents the proportion of residents under 15 years old, while the elderly population ratio indicates the proportion of residents aged 65 and above. Together, these age-structure ratios provide insights into demographic composition.

Economic characteristics are analyzed through six variables: total number of businesses, total employees, primary industry employment ratio, manufacturing employment ratio, and the area and number of new industrial complexes. The number of businesses and employees represents the scale of economic activity in each region. The manufacturing employment ratio indicates the industrial structure. The area and number of new industrial complexes developed between 2000 and 2020 serve as indicators of industrial growth.

Built environment characteristics are assessed using a set of key variables. Housing-related indicators include total housing units, the proportion of aging housing stock (defined as housing over 40 years old), the share of single-family housing, and the share of apartment units. These variables indicate both housing supply conditions and prevailing residential patterns within each municipality. Living infrastructure accessibility is measured by the average distance from the center of each grid cell to the nearest facility of each type, using road network-based travel distances. Facility location data are provided by the National Geographic Information Institute (NGII) and include a wide range of amenities: community parks, theme parks, public sports facilities, daycare centers, kindergartens, elementary schools, libraries, public libraries, small libraries, cultural facilities, comprehensive social welfare centers, senior welfare centers, senior classrooms, senior leisure facilities, public health centers, medical clinics, hospitals, general hospitals, emergency medical centers, and pharmacies. Urban form and land-use characteristics include urban density, land-use diversity, and green area per capita. Urban density is calculated as the total population divided by the total urbanised area, capturing the intensity of development. Land-use diversity is quantified using the Shannon entropy index, based on the proportional distribution of residential, commercial, and industrial land areas. Green area per capita is calculated by dividing the total area of green space by the population, representing access to ecological and recreational amenities.

The primary data sources for this study include SGIS, with additional data on industrial complexes obtained from the Industrial Location Information System (ILIS). Additional data such as cumulative birth rate, cumulative death rate, net migration rate, urban density, land-use diversity, and green area per capita were obtained from the Korean Statistical Information Service (KOSIS).

Ⅳ. Results

1. Spatial Patterns of Urban Shrinkage

As shown in <Figure 1>, the Within-Cluster Sum of Squares (WCSS) decreases with more clusters, but a clear “elbow point” is not evident. Inflection points at 4, 6, and 7 clusters suggest multiple candidates. To complement this, we used the silhouette score, which was highest for 6 clusters (0.2915), indicating the best balance between cohesion and separation. Additionally, the 6-cluster configuration revealed the most distinct and interpretable spatial patterns, with clear links to economic and geographic variables. Based on both quantitative and qualitative assessments, we selected the 6-cluster solution for analysis.

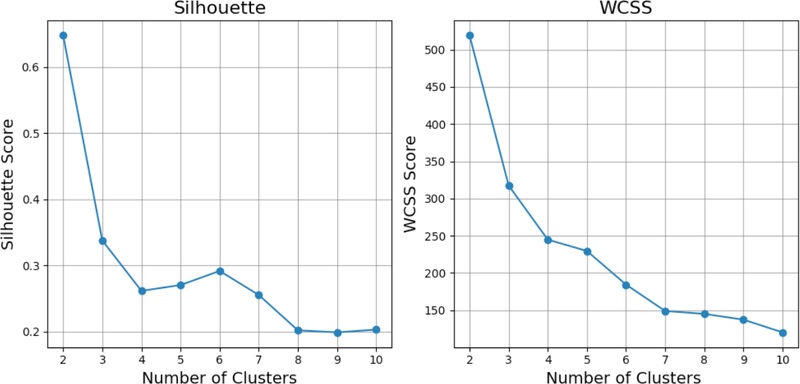

Figure 1.

Silhouette score and Within-Cluster Sum of Squares

<Figure 2> presents the population change trajectories for urban and non-urban areas across six urban shrinkage types. The left and middle panels display time-series trends in population change rates, measured relative to the baseline year 2000, for urban and non-urban areas, respectively. The right panel provides a spatial typology of urban shrinkage, plotting the average population change rate in urban areas (y-axis) against that in non-urban areas (x-axis).

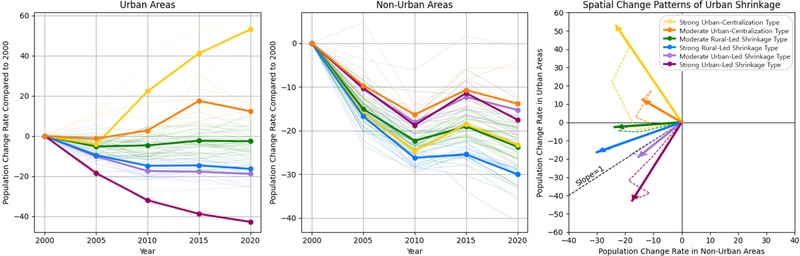

Figure 2.

Time series changes in population of urban and non-urban areas by urban shrinkage type

Types located in the second quadrant were labeled as “Urban Centralization Type,” reflecting a pattern of population increase in urban areas. The length of the arrows represents the magnitude of change, and this intensity is incorporated into the labels as either “Strong” or “Moderate” Urban Centralization. The Strong Urban-Centralization Type, encompassing Imsil-gun and Haman-gun, represents the smallest cluster characterized by strong urban population growth (53.07%) and significant non-urban decline (-23.27%). In this type, the urban areas have formed around the county administrative centers, and urban density has been further strengthened by the introduction of population-attracting facilities such as military bases (in Imsil-gun) and industrial complexes (in Haman-gun), along with new residential developments.

Types located in the third quadrant show population decline in both urban and non-urban areas. These were further distinguished based on whether the decline was more prominent in urban or non-urban areas, using the line y = x as a reference. Accordingly, they were categorized as either “Rural-Led Shrinkage” or “Urban-Led Shrinkage”, with the intensity of decline again classified as “Strong” or “Moderate”. As a result, the six final types are named: Strong and Moderate Urban Centralization, Rural-Led Shrinkage, and Urban-Led Shrinkage. Detailed statistics on each type can be found in <Appendix>.

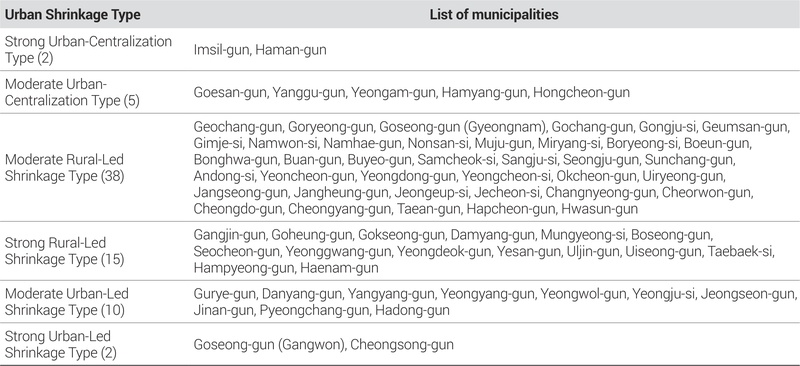

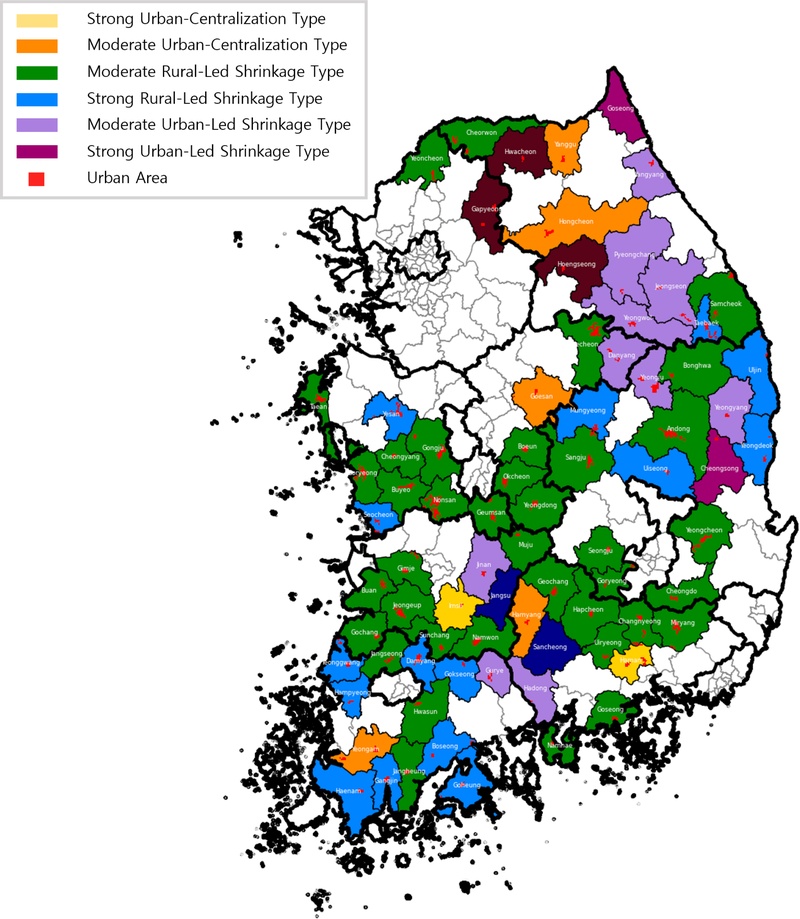

The spatial distribution of these types (Figure 3) reveals complicated patterns. The Moderate Rural-Led Shrinkage Type is concentrated in Chungcheongnam-do, Jeollabuk-do, and Gyeongsangnam-do, often in contiguous areas. The Strong Rural-Led Shrinkage Type is predominantly found in Jeollanam-do and Gyeongsangbuk-do, while Moderate Urban-Led type clusters in Gangwon-do and Gyeongsangbuk-do. This multi-temporal clustering approach, incorporating both urban and non-urban areas, reveals more complex patterns of urban shrinkage than previous studies focusing solely on urban areas. Particularly noteworthy is the distinction between Urban-Centralization Types and Urban-Led Shrinkage Types, which show very different spatial patterns of decline.

Figure 3.

Geographical mapping of urban shrinkage type

2. Analysis of Characteristics by Urban Shrinkage Spatial Pattern Types

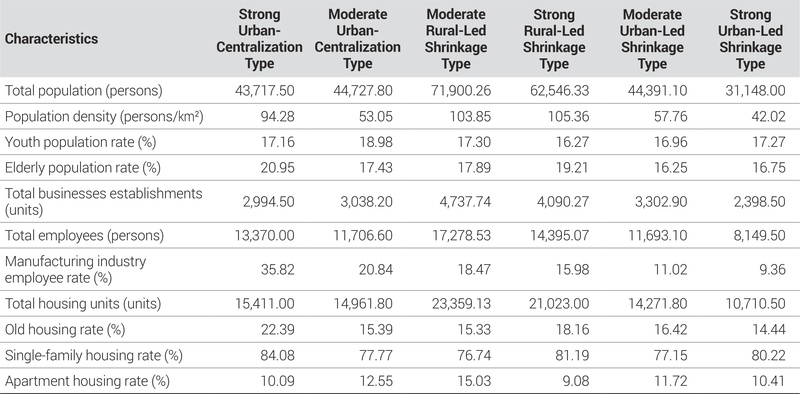

To examine whether the six spatial types differ significantly in their demographic, social, and economic characteristics, we applied the Kruskal–Wallis H test, a non-parametric method appropriate for comparing more than three groups without assuming normality. The results revealed statistically significant differences (p<0.05) in changes in variables such as the total population, net migration rate, elderly population rate, number of businesses, employees, housing units, single-family housing rate, and accessibility to living infrastructure, suggesting that the spatial types are not only distinct in their patterns of shrinkage but also in their associated socioeconomic conditions.

1) Population Change Compositions

Our study classified spatial shrinkage patterns by examining population changes in urban and non-urban areas. Population change comprises natural factors (births and deaths) and social factors (migration). For each type, we analyzed the rate of change in births, deaths, and migration between 2005 and 2020,²⁾ using mean values within types for comparison (Figure 4).

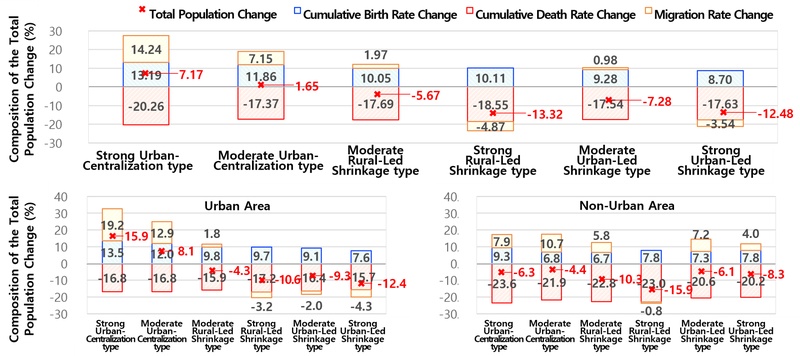

Figure 4.

Composition of the total population change

Natural population factors show consistent patterns across shrinkage types. Death rates average –18.67% city-wide across all types, with non-urban areas experiencing higher rates (–22.02%) compared to urban areas (–16.30%). Birth rates are also relatively uniform, averaging 10.53% city-wide, with urban areas showing higher rates (10.28%) than non-urban areas (7.62%).

Migration patterns, however, vary significantly among types. The Strong Urban-Centralization Shrinkage Type experienced population inflow in both areas, with stronger inflow in urban areas. In contrast, Urban-Led Shrinkage Types show strong urban outflow but significant non-urban inflow. Strong Urban-Led type exhibits either modest inflow or substantial outflow. Notably, except for the Strong Rural-Led Shrinkage Type, all types demonstrate positive population inflow into non-urban areas. While urban areas experienced either population inflow or outflow depending on the type, non-urban areas consistently showed population inflow ranging from 4% to 10% of average population change across all types except the Strong Rural-Led Shrinkage Type. This finding is particularly significant as it indicates that some of the current urban shrinkage patterns are not aligning with the core principle of shrinking smart strategies, which emphasizes strengthening population density in concentrated urban areas.

These findings illustrate that while natural demographic factors remain relatively consistent across types, the distinct spatial patterns of urban shrinkage are primarily shaped by variations in migration patterns. This underscores the predominant role of social factors in determining the spatial characteristics of population decline in shrinking municipalities.

2) Economic and Built Environment Characteristics

Our analysis of spatial patterns in shrinking cities reveals that variations between urban and non-urban areas are associated with differences in demographic, economic, and built environment characteristics, as shown in <Figure 5>. They function as both causes and consequences of population decline (Shin et al., 2021; Nam, 2022; Ribant and Chen, 2019). We examined these characteristics across different shrinkage types by analyzing mean rates of change between 2000 and 2020, with the exception of infrastructure accessibility data which is only available for 2020.

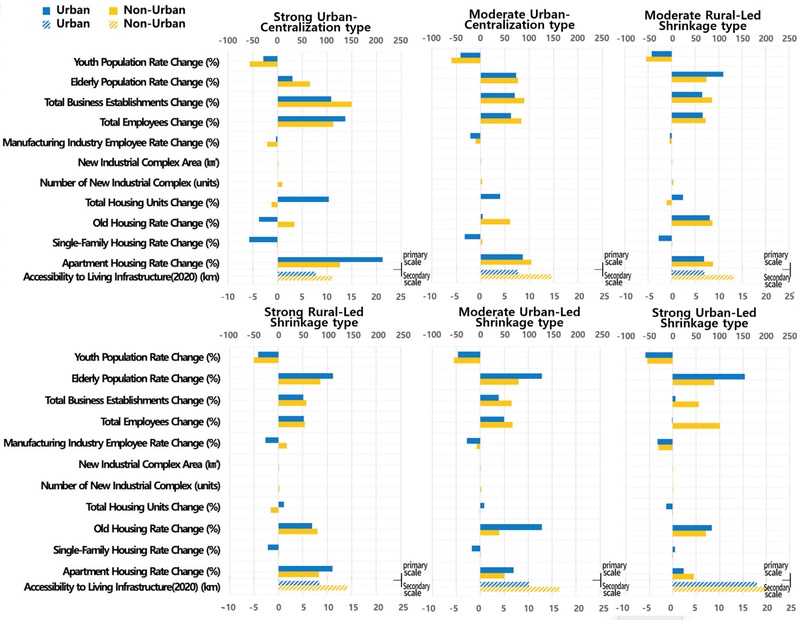

Figure 5.

Average rate of change in internal haracteristics of cities by Urban Shrinkage type

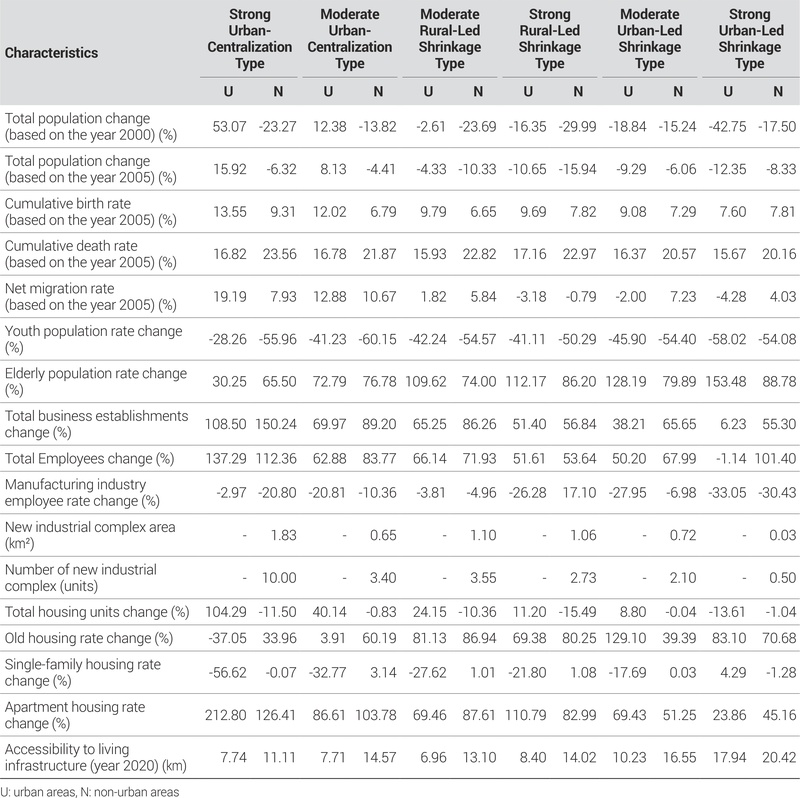

Statistical significance of the differences across shrinkage spatial types was tested using the Kruskal-Wallis test, a nonparametric statistical test suitable for limited number of samples or samples with non-normality (McKight et al., 2010). The test (p<0.05) revealed significant differences between shrinkage types in total population change, net migration ratios, elderly population ratios change, total business establishments change, total employment change, total housing units change, single-family housing ratios change, and accessibility to living infrastructure. However, no significant differences were found in cumulative birth and death ratios, youth population ratios change, manufacturing industry employment ratios change, old housing ratios change, and apartment housing rate change. The results are shown in <Appendix 3>.

The detailed characteristics of each type are as follows. The Strong Urban-Centralization Shrinkage Type demonstrates the healthiest demographic structure among all types, with the lowest rates of youth population decline and elderly population increase. It exhibits exceptional economic vitality, showing the largest growth in total business establishments (131.28%) and employment (118.28%). The population-attracting facilities such as military bases in Imsil-gun and industrial complexes in Haman-gun, along with new residential developments, have driven remarkable industrial growth. Housing development in this type is robust, with housing stock ranking second only to the Moderate Urban-Centralization Type. It also features the best accessibility to living infrastructure among all types. The Moderate Urban-Centralization Shrinkage Type demonstrates patterns similar to the Strong Urban-Centralization Type but with more moderate intensity. It shows overall decline of -6.45%, urban growth of +12.38%, and non-urban decline of -13.82%. This type shows strong economic development, with substantial housing growth and good urban infrastructure accessibility.

The Moderate Rural-Led Shrinkage Type demonstrates modest economic growth (+74.31% businesses, +68.01% employment). Housing development remains stagnant (+3.81% new housing). The Strong Rural-Led Shrinkage Type demonstrates the most severe overall population decline (-26.07%), affecting both urban and non-urban areas. Economic growth indicators are the lowest among all types, with an actual decline in housing units (-5.74%). This type shows manufacturing employment growth in non-urban areas (+17.10%) despite overall decline, suggesting some industrial restructuring. Living infrastructure accessibility is poorer compared to the previous types.

The Moderate Urban-Led Shrinkage Type shows moderate economic growth, and some apartment-centered development. The Strong Urban-Led Shrinkage Type presents the most dramatic urban population collapse (-42.75%) with more moderate non-urban decline (-17.50%). It demonstrates extreme aging, with the share of elderly population growth of +108.90%, stagnant economic development in urban areas (employee change -1.14%), and deteriorating housing conditions. Infrastructure accessibility is poorest among all types, indicating severe urban disinvestment. In fact, new multi-family housing developments near military bases and correctional facilities in the outskirt rather than in the original town centers appear to have further intensified the decline of the urban core and deteriorated housing and infrastructure conditions in Goseong-gun and Cheongsong-gun.

At the municipality level, we compared changes in net population density, per capita green area, and landuse diversity as shown in <Appendix 3>. Overall, net population density declined across most types between 2005 and 2020, reflecting the broader pattern of population loss in shrinking municipalities. Notably, the largest decreases were observed in Strong Urban-Led Shrinkage Type, which indicates that population decline in these areas is occurring primarily within urban centers. The only exception is the Strong Urban-Centralization Type, which experienced a slight increase in density. Changes in green area per capita show an increasing trend in most of the types. However, this increase should be interpreted with caution: it does not necessarily indicate an actual expansion of green spaces, but rather reflects population decline, which results in fewer residents sharing the same amount of land. In other words, the increase in per capita green space is largely a passive outcome of depopulation rather than proactive green infrastructure development. In contrast, the Strong Urban-Centralization Type experienced a notable decline in green area per capita, likely due to densification and new residential developments. These contrasting patterns highlight the importance of distinguishing between physical land use changes and statistical increases driven by demographic shifts when interpreting per capita indicators. Land use diversity generally increased across most types, indicating a tendency toward more mixed-use environments despite declining populations. This may reflect adaptive strategies to sustain local vitality through functional diversification. However, two urban-led shrinkage types experienced a decline in land use diversity, implying increasing land use specialization or abandonment.

These patterns represent both causes and consequences of broader socioeconomic transformations. The Urban-Centralization types likely result from successful urban development policies, infrastructure investments, and employment opportunities that attract population from surrounding areas. Simultaneously, this concentration reinforces economic advantages and stimulates further urban development.

These findings demonstrate that spatial shrinkage patterns cannot be explained solely by the total number of population decline. Diverse phenomena with complex interplay between demographic, economic, and physical characteristics result in different shrinkage patterns. The variations across types suggest the need for tailored policy responses that address both causes and consequences of each specific pattern.

Ⅴ. Discussion

Despite increasing emphasis on smart shrinkage strategies in response to South Korea’s severe population decline, there remains a notable lack of comprehensive research on the spatial patterns of shrinkage within depopulating cities. Strategies that advocate for compact, high-density urban cores must be grounded in an understanding of intra-city demographic shifts, specifically differentiating between urban and non-urban areas. This study addresses this gap by applying the Time Series K-means algorithm to classify spatial population change patterns within shrinking municipalities from 2000 to 2020. It also examines the demographic, economic, and built-environment characteristics associated with each shrinkage type. The findings provide several key policy implications for implementing context-sensitive smart shrinkage strategies.

Our analysis reveals that spatial shrinkage within depopulating municipalities is far from uniform. Of the 77 shrinking municipalities analyzed, only seven exhibit population growth in their urban cores, corresponding to the Moderate and Strong Urban Centralization Types. The most prevalent pattern, Moderate Rural-Led Shrinkage, accounting for nearly half of all municipalities, is characterized by mild population loss in urban areas and severe depopulation in non-urban areas. While this does not indicate a strong urban-core compacting trend, it suggests that in at least more than half of the depopulating cities, urban areas are retaining population more effectively than rural surroundings, aligning with normative smart shrinkage principles that emphasize urban concentration.

For municipalities experiencing moderate or strong growth in urban cores (Urban-Centralization Types), smart shrinkage strategies should aim to reinforce this growth while preventing over-investment in declining peripheral areas. This involves the careful maintenance and upgrading of urban infrastructure and public services, alongside density management to ensure efficient provision of health, welfare, and commercial services (Yoon and Lee, 2019). Vacant homes and lots in the core should be repurposed through infill development, temporary uses, or green infrastructure. Additionally, strengthening connectivity with surrounding areas through functional and institutional integration at the city-region level is critical for sustaining urban-regional synergy (Shin and Woo, 2022; Koo, 2023).

In Moderate and Strong Rural-Led Shrinkage Types, population loss is severe in non-urban areas (up to -24% to -30% since 2000), while urban areas are declining more modestly. These municipalities require strategic planning for underused or abandoned non-urban spaces. As climate change increases the frequency of extreme weather, rewilding and environmental restoration of vacant peripheral land can offer dual benefits by mitigating climate risks and enhancing ecological value (Koo et al., 2016). Conservation corridors and green buffers can be planned to preserve undeveloped land, while long-term strategies for gradual rehabilitation of low-density rural areas can be pursued (Byun et al., 2024; Koo, 2023). Where public services in non-urban areas are to be discontinued or relocated, it is essential to implement measures that enhance accessibility to essential services for remaining residents. In cases where service maintenance costs are prohibitively high, shared service models or joint-use agreements with neighboring jurisdictions may help deliver services more efficiently.

Strong Rural-Led Shrinkage Type and Moderate and Strong Urban-Led Shrinkage Types are marked by over 16% population loss in urban cores, increasing the risk of vacant housing and urban perforation (Son and Hong, 2023). Without timely intervention, this trend can accelerate physical deterioration in urban areas, undermining the potential for future recovery. Uncontrolled scatter-type development in rural areas must be curbed through stricter permitting standards and spatial containment policies (Byun et al., 2024; Koo, 2023). For Urban-Led Shrinkage municipalities, where aging and infrastructure inaccessibility are particularly acute, improving intra-urban mobility is a pressing priority (Byun et al., 2024). Urban revitalization policies should include fiscal incentives, such as tax credits, mortgage subsidies, and housing purchase support, for developers, landlords, and prospective residents to stimulate repopulation in the core (Koo et al., 2016).

Ⅵ. Conclusions

This study analyzed spatial shrinkage patterns in 77 depopulating municipalities in South Korea using multi-temporal clustering analysis, revealing six distinct types of urban shrinking dynamics. Our analysis yields several key findings and implications.

First, this study identifies main patterns of urban shrinkage based on the internal spatial transformation: Urban-Centralization, Rural-Led, and Urban-Led with strong and moderate variations. Our analysis shows that spatial shrinkage patterns vary across cities, with both the Urban Centralization Types and the prevalent Moderate Rural-Led Shrinkage Type demonstrating relatively better population retention in urban areas than in non-urban areas. This suggests that in about 60% of the depopulating municipalities, urban areas seem to function as population anchors.

Second, our analysis reveals that while natural demographic factors (births and deaths) remain relatively consistent across types, migration patterns significantly differentiate shrinkage types. Notably, all types, except for the Strong Rural-Led Shrinkage Type, experienced positive population inflow into non-urban areas, contradicting shrinking smart strategies that emphasize core area densification. While Korean central and local governments implement various policies to attract population, in declining cities, determining where to direct population including existing residents, may be even more critical for sustainability than in growing cities.

Third, we found that demographic, economic and built environment characteristics vary significantly among shrinkage types. The Urban-Centralization Types show strong economic growth and housing development with better accessibility to living infrastructure, particularly in urban areas. On the other hand, the Urban-Led Type demonstrates significantly higher elderly growth rates, poorer economic activities, reduced housing supplies, and worse living infrastructure accessibility, even in urban areas. However, our analysis is insufficient to determine whether these characteristics have led to different spatial transformation patterns or vice versa. These spatial patterns function simultaneously as both causes and consequences of demographic, economic, and physical environmental changes (Shin et al., 2021; Nam, 2022; Ribant and Chen, 2019), reflecting their mutually reinforcing relationships. This complex causality requires further investigation in future studies.

These findings have important academic and policy implications. Academically, our research contributes to the understanding of urban shrinkage by demonstrating the uneven spatial transformation patterns. While numerous studies examine urban “growth” spatial patterns, research on “shrinkage” spatial patterns remains limited (Kawabe and Watanabe, 2021; Son and Hong, 2023). For policy makers, our findings suggest that current development patterns often contradict shrinking smart principles, necessitating policy realignment. Shrinking cities must acknowledge ongoing population decline and transition toward a downsized planning framework that concentrates urban functions at an appropriate scale (Yang et al., 2024). Moreover, areas facing difficulties in providing adequate public services under reduced population scenarios require special attention. In this context, emerging smart city technologies can play a critical role in bridging service gaps. From a spatial planning perspective, different shrinkage types demand strategic redistribution of urban functions and the selective reuse of underutilized spaces (Yoon and Lee, 2019). Tailored, type-specific interventions are essential, as a one-size-fits-all approach is unlikely to effectively address the diverse challenges, as discussed in the previous section.

Despite these contributions, several limitations of our study should be noted. First, the population grid data from the Statistics Office has missing values, which might have led to underestimation of population in some areas. Second, the UN population density criteria used to define urban areas may be too stringent for small cities in our study. Third, the focus on population indicators alone may not fully capture spatial shrinkage dynamics. Lastly, it should be noted that securing more time points would be desirable to enhance the reliability and precision of time-series analysis results.

Future research should investigate the temporal evolution of these patterns, causal relationships between factors influencing urban shrinkage, and the effectiveness of different policy interventions. While high-density centralization is generally considered desirable for shrinking cities (Ha and Kang, 2022; Lee and Han, 2014; Kwon et al., 2018; Park et al., 2020; Nam, 2022), empirical studies on quantitative effects are lacking. Therefore, future research should examine how different shrinkage types affect urban performance measures such as energy usage and economic outcomes. Additionally, to deepen the understanding of the observed spatial disparities, future research should investigate whether these divergent internal spatial transformations stem from pre-existing socioeconomic and physical characteristics, or whether they are the outcomes of differing patterns of population decline. A more rigorous causal analysis is needed to disentangle these relationships, which would help clarify the mechanisms driving spatial restructuring in shrinking regions.

Acknowledgments

This work was supported by the BK-21 FOUR program through National Research Foundation of Korea (NRF) under Ministry of Education.

This paper is a revised and expanded version of a part of Kang, M.K.’s 2024 master’s thesis, “A Study on the Spatial Shrinkage Characteristics of Depopulating Cities,” which was originally presented at the 2024 Fall Conference of the Korea Planning Association.
